Artikel-Nr.: | 21.15.9490 |
---|---|
Herst.-Art.-Nr. | 21.15.9490 |
Beschreibung

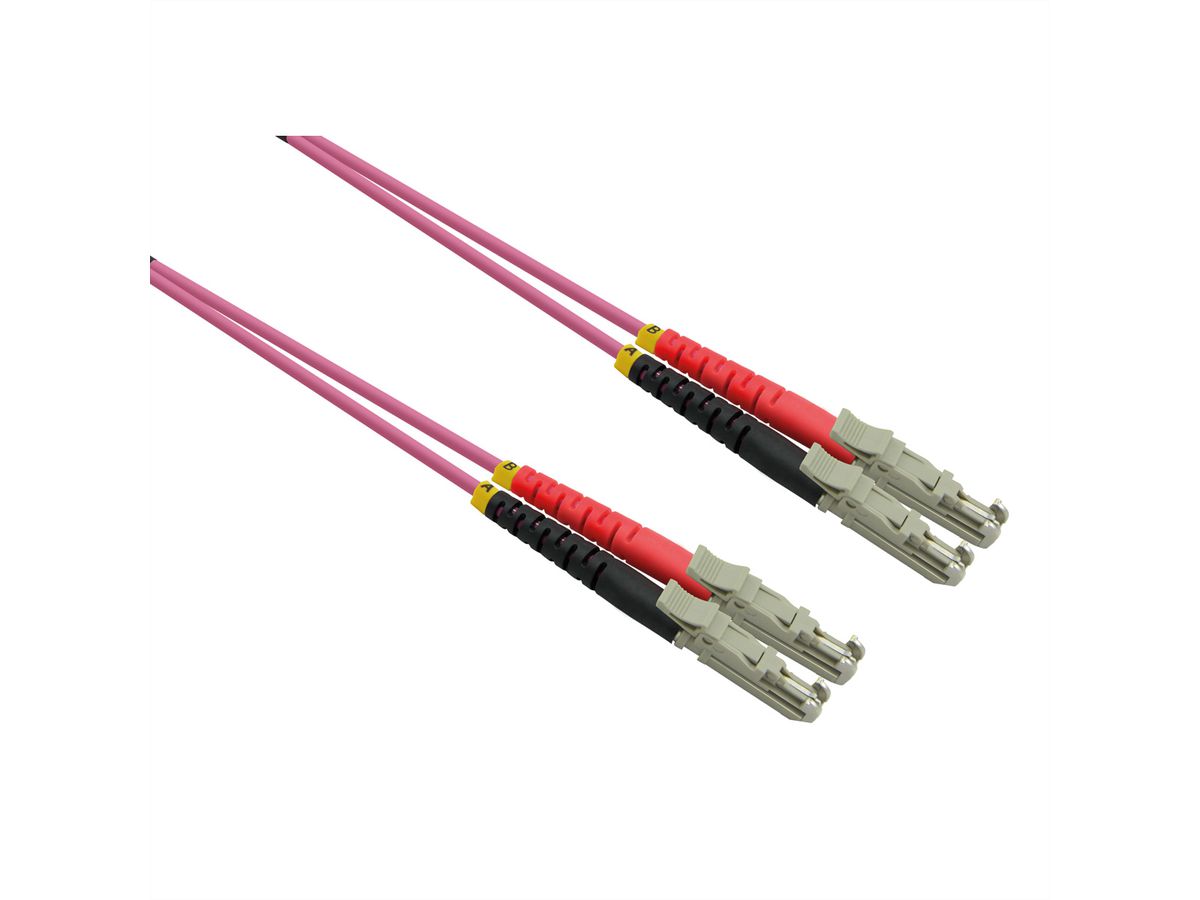

Hochwertiges Glasfaserkabel mit beidseitig hochsicherem LSH-Anschluss - beide Anschlüsse sind UPC-poliert.
- Duplex-Kabel mit dem Fasertyp 50/125µm OM4
- Kabelmaterial: Mantel halogenfrei und flammhemmend, violett, Vollader mit Aramid-Zugentlastung
- LSH-Stecker: präzise gefertigte Stecker mit geringer Rückfluss-Dämpfung, Keramik- Ferrule
- UPC-poliert für geringere Einfügedämpfung
Spezifikationen
Hersteller | ROLINE |
---|---|
Produktgruppe | Fiber Optic Kabel |
Produkttyp | LWL-Patchkabel OM4 |
Farbe | violett |
Länge | 10 m |
Anzahl Fasern | 2 |
Kabeltyp | Duplexkabel |
Aussenkabel | nein |
Faserquerschnitt | Multimode 50/125µm OM4 |
Anschlüsse | LSH / LSH |
Seite 1 Typ des Anschlusses | LSH |
Seite 2 Typ des Anschlusses | LSH |
Min. Biegeradius, statisch | 30 mm |
Min. Biegeradius, dynamisch | 60 mm |
Aramid Zugentlastung | ja |
Kabel LSOH | ja |
Flammwidrig nach IEC 60332-1-2 | ja |
Raucharm nach EN IEC 61034-2 | ja |
Halogenfrei nach EN IEC 60754-2 | ja |
Max. Einfügungsdämpfung | 0.2 dB |
Min. Rückflussdämpfung | 30 dB |
RAL-Farbe | RAL 4003 Erikaviolett |
Gewicht | 145.3 g |
Verpackungshöhe | 30 mm |
Verpackungsbreite | 200 mm |
Verpackungstiefe | 200 mm |
Paketgewicht | 0.1 kg |
